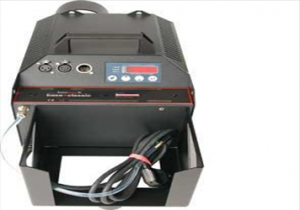

Base-Classic Fogger

The base*classic unites the current digital technology with proven technique and power. Several unique features guarantee simple operation and set up time. DMX 512 is standard and connection is done with 5pin-XLR plugs. The DMX address can be adjusted and saved via the control panel. The machine can also be controlled with analog (0-10v) via a lighting control board or via XLR remote (option). This connection is done via 3pin-XLR-plugs. A stand-alone-mode is also possible with adjustments done directly at the machine.

With the internal timer function, you can adjust three different aspects of the program:

1) Fog time can be manipulated down to the second

2) The wait time is controlled by the minute

3) Output varies between 1-99%

The control panel utilizes simple symbols to allow for easy operation. It is also protected with a fabricated cover to prevent any dust particals access to the buttons.

The digital technology makes fine adjustments of the pump possible. In steps of 1% the output can be adjusted from 0-99%. From a tiny cloud to a thick fog. The base*classic Digital Fogger allows output adjustments from 1- 99%! This allows the base*classic to be used in both small and large locations.

Category: SKU: GL-HB-BCL

Description

Base-Classic

Standard fog machine with digital technology

  • DMX serial production
  • 1300W / 230V/50Hz
  • Integrated timer
  • Adjustable with digital technology
  • Continuous fogging possible
  • High output

Technical data – base-classic

Procedure:
Power requirement:
Voltage:
Voltage US:
Warm up time:
Fluid consumption:

Fluid tank capacity:
Fog output:
Fogging time:

Control:

Temperature control:
Overheating protection:
Dimensions
(L x B x H ):
Weight w/o Fluid:

vaporizing fog generator
1300 Watt
230 V/ 50 Hz
120 V /60 Hz
approx. 7 min.
at max. output 120 ml/min
at cont. output 35 ml/min
5 liters
adjustable in steps à 1% ( 0-99)
at 100% output approx. 40 sec.
at < 50% output continuous output
DMX 512
0 – 10 V analog
internal Timer
Stand alone mode
Radio remote (Option)
Microprocessor controlled
Heater block/Thermostat
Pump/Thermal switch
53 x 23 x 24 cm

12 kg
